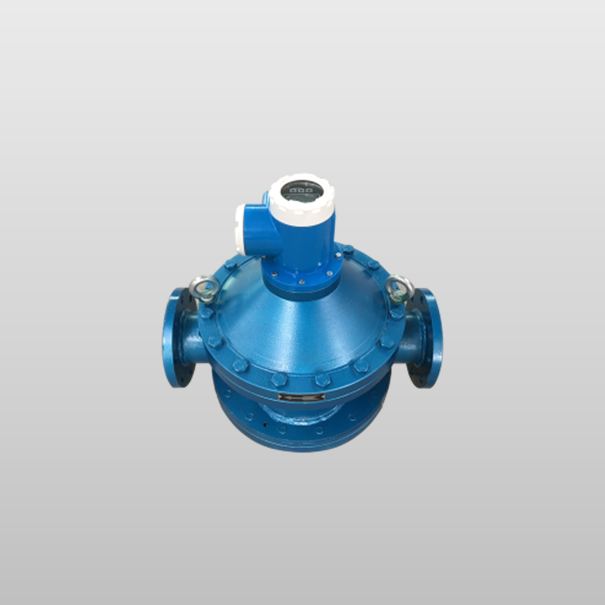

Positive Displacement Flowmeter (MEGAPD)
Positive Displacement Flowmeter (MEGAPD) Positive Displacement Flowmeter (MEGAPD) Positive Displacement Flowmeter (MEGAPD) Positive Displacement Flowmeter (MEGAPD) Positive Displacement Flowmeter (MEGAPD)

Positive Displacement Flowmeter (MEGAPD)

Item No.: 28
Positive displacement flow meters measure the volumetric flow of fluids in pipes, such as water, hydrocarbons, cryogenic liquids, and chemicals.
INQUIRY
Description Specifications Optional Converter


The MEGAPD Oval gear flowmeter features two precisely machined rotating elliptical (oval) gears which rotate and mesh within the meter's interior housing in order to form a measuring chamber of known volume. The MEGAPD may be used to accurately determine volumetric flow rate as a function of the gears' velocity. The low cost MEGAPD provides good accuracy while offering reduced pressure drop versus traditional circular-gear type PD meters. The MEGAPD meter comes with a rugged battery-powered display module that indicates flow rate and totalized flows in user-configurable engineering units.


  • Superior accuracy - to 0.5% of reading with ±0.03% repeatability
  • Elliptical gear design provides low pressure loss
  • Meter body is available in cast iron, case steel, 304SS or 316SS
  • Bearings are available in cast iron, case steel, 304SS or 316SS
  • Will accommodate pressures of up to 63 bar
  • Will accommodate viscosities of up to 2000mpa.s
  • Available with pulse, 4-20mA, RS485


Looking for more information on our people,

technology and solutions?

Contact us:   sales@mega-meter.com





Line size DN10~DN200
Flow range Up to 340m3/h
Pressure rating 1.6MPa, 2.5MPa, 4.0MPa, 6.3MPa
Process temperature -20~+80deg C (standard),  max temp can be up to 200deg C
Body material Cast iron,  Cast steel,  Stainless steel 304,  Stainless steel 316
Viscosity 2~200mpa.s (standard),  200~2000mpa.s (optional)
Protection IP65
Accuracy ±0.5%(standard),  ±0.2%(optional)
Repeatability ±0.03% of reading
Ambient temperature -20 ~ +60 deg C
Display mode Round mechanical counter,  Digital LCD display
Output Pulse, 4-20mA, RS485
Power supply 12 - 24VDC
Explosion ExiaIIBT4
Process connection Flange, Thread
Measured medium Liquid and all kinds of oil




  • Round mechanical counter
  • Cast iron material
  • Round mechanical counter with reset
  • Cast iron material
  • Round mechanical counter with reset
  • Cast iron material
  • High temperature
  • Round mechanical counter
  • Cast iron material
  • High temperature
  • Heating jacket
  • Round mechanical counter with reset
  • SS304 material
  • Round mechanical counter
  • SS304 material
  • High temperature
  • Pulse or 4-20mA signal output
  • Round mechanical counter
  • SS304 material
  • High temperature
  • Heating jacket
  • Pulse or 4-20mA signal output
  • Digital LCD display
  • Cast iron material
  • 4-20mA
  • Digital LCD display
  • Cast iron material
  • Pulse, 4-20mA,RS485
